tubes shapes
| Tube Shape | Applicable Diameters Mm (Inch) |
Applicable Lordan Patterns |
Common Uses | ||
|---|---|---|---|---|---|
| Smooth |  |
7 mm | ​15 | Standard in all coils | |
| 9.52mm | (3/8") | 9 | |||
| Rifled |  |
7 mm | 15 | Condensers and evaporators for increased capacities | |
| 9.52mm | (3/8") | 9 | |||
| Turbo Spirals in Tube |  |
7 mm | 15 | Improved capacities for liquid carrying coils with limited size restrictions | |
| 9.52mm | (3/8") | 9 | |||

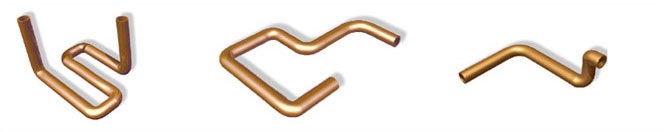

TUBES BENDING CAPABILITY
​Available Tube O.D.
​
| Inch | 3/16" | 1/4" | 5/16" | 3/8" | 1/2" | 5/8" | 3/4" |
| mm | 4 | 7 | 10 | 12 | 15 | 18 |
End Forming of Copper Tubes - Standards Options
| O.D range | ||
|---|---|---|
| O-Ring Long Pilot |  |
9.53 to 19.05 (3/8" to 3/4") |
| O-Ring Short Pilot |  |
9.53 to 19.05 (3/8" to 3/4") |
| Flare |  |
6.35 to 19.05 (1/4" to 3/4") |
| Water O-Ring |  |
9.53 to 22.22 (3/8" to 7/8") |
| Water Cone Head |  |
9.53 to 19.05 (3/8" to 3/4") |
| Reduced Diameter |  |
Any |
| Expanded Diameter |  |
Any |
